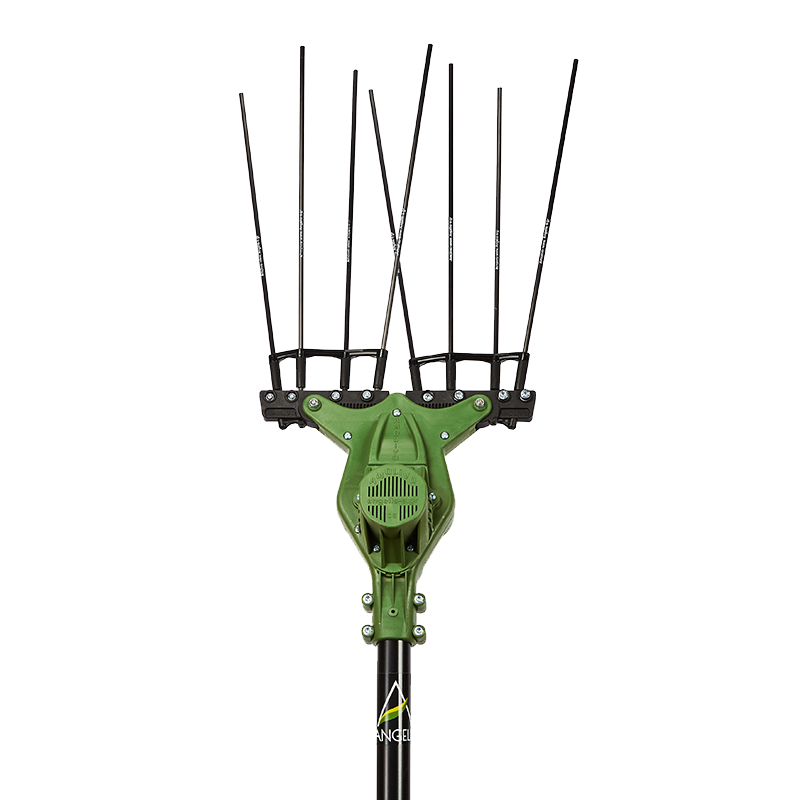

Amolivo

The new generation of machines is here

THE MOTION

Amolivo is equipped with a state-of-the-art brushless motor and a speed controller, allowing you to adjust the machine’s pulsating vibrations according to your needs and the type of olive. The 6 operation levels, ranging from 700 to 1550 pulsating vibrations per minute, along with the high torque at low speeds, make Amolivo the ultimate tool for harvesting all types of olives.

Olive shaker, electric olive harvester, electric olive shaker, olive shaker rake, olive picker, electric olive picker

THE HEAD

Amolivo is 100% Greek-made with a patented mechanism of our own invention. It is a double-comb olive harvester with carbon fiber rods.

2 eccentrics, 2 connecting rods, steel gears,
8 carbon fiber rods

Zero wear Perfect balancing

Unique arrangement of 5mm carbon fibers on two separate bases. Each base holds 4 carbon rods firmly mounted with a special elastic mold of our own design. The two bases form a V-shape and are designed to offer the widest harvesting span on the market (54cm maximum range). Fully controlled closure to avoid pinching.

THE MOTOR

Powerful 800W brushless motor.
New repeatable control switch.
The 6-speed controller gives Amolivo the ability to operate between 700–1550 pulsating movements per minute at 12V, covering even the most demanding users.
Reinforced and fully waterproof control board with memory system.
Quick-release socket for easy use in the field.
Professional use with 80Ah battery for 8 hours of operation.
Can also be used with our company’s generator (provided with voltage stabilizer at 14V).

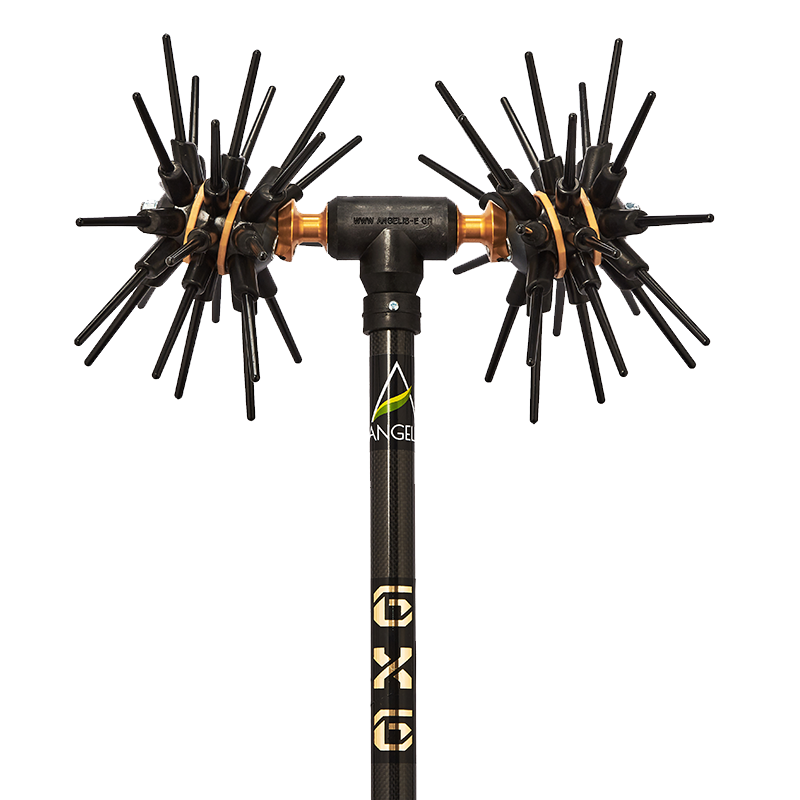

Asteras Max 6×6

Maximum Range

Absolute Performance

THE MOTION

With the NEW SYSTEM (Independent sphere movement) 4×4 and 6×6, it achieves:

Greater penetration into the densest parts of the olive tree
Minimization of damage to the fruits and the olive tree
Effortless harvesting as it transmits zero vibrations to the user.

The Asteras Max olive harvester is a pulsating machine with 2 heads and 48 carbon fiber rods. The unique arrangement of the carbon fibers, combined with the wide-range balanced pulsating motion, achieves maximum performance without any damage to the tree.

THE HEAD

The ASTERAS MAX is 100% Greek-made with a patented mechanism of our own invention, which is an olive harvester with eccentric counterweights made of T8 aluminum

48 carbon fiber rods,
2 eccentric T8 aluminum counterweights

Building upon our company’s best seller, the ASTERAS CF, we further enhanced it by adding an extra rod holder with 8 rods for maximum harvesting range and even greater efficiency. The unique arrangement of the rods, combined with the flexibility and penetration of the head, results in the ultimate tool for olive harvesting.

THE MOTOR

Equipped with BOSCH DC electric motor 400W, delivering 2000 pulsating movements per minute at 16V
Includes ON-OFF switch 35A and a reducer converting head motion to pulsating movement
Also operates with a car battery (WITH CONVERTER ADDITION), with consumption of 10–12 A/HOUR
Comes with a 13-meter cable

Asteras Electric

New Product

With Brushless motor

THE MOTION

With the NEW SYSTEM (Independent sphere movement) 4×4, it achieves:

Greater penetration into the densest parts of the olive tree
Minimization of damage to the fruits and the olive tree
Effortless harvesting as it transmits zero vibrations to the user.

The Asteras Electric olive harvester is a pulsating machine with 2 heads and 32 carbon fiber rods. The unique arrangement of the carbon fibers, combined with the wide-range balanced pulsating motion, achieves maximum performance without any damage to the tree.

THE HEAD

The Asteras Electric is an olive harvester with eccentric counterweights made of T8 aluminum

2 eccentrics,
32 conical carbon fiber rods
Advanced technology elastomer material

Zero wear Perfect balancing *Possibility to add the 4×4 system to all Astera models

THE MOTOR

Powerful 1000W brushless motor.
Equipped with speed controller using a rheostat (dimmer).
Range of 700–2500 pulsating movements per minute at 12V, suitable even for the most demanding users.
Professional use with an 80Ah battery for 8 hours of operation.
Can be used with our company’s generator (provided with a voltage stabilizer at 14V).

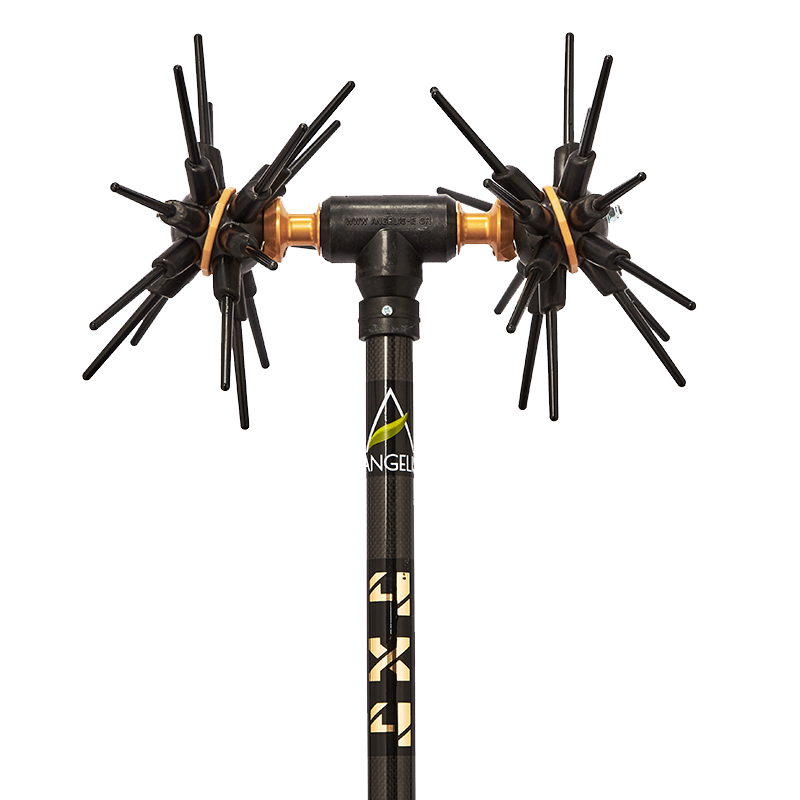

Asteras CF 4×4

Zero Damage

Maximum Performance

THE MOTION

With the NEW SYSTEM (Independent sphere movement) 4×4, it achieves:

Greater penetration into the densest parts of the olive tree
Minimization of damage to the fruits and the olive tree
Effortless harvesting as it transmits zero vibrations to the user.

The Astéras cf olive harvester is a pulsating machine with 2 heads and 32 carbon fiber rods. The unique arrangement of the carbon fibers combined with the wide-range balanced pulsating motion achieves maximum performance without any damage to the tree.

THE HEAD

The Asteras cf* is an olive harvester with eccentric counterweights made of T8 aluminum

2 eccentrics,
32 conical carbon fiber rods
Advanced technology elastomer material
Steel gears

Zero wear Perfect balancing *Possibility to add the 4×4 system to all Astera models

THE MOTOR

BOSCH electric DC motor 400W, output 2000 rpm @ 16V DC.
With 35A on-off switch and reducer that converts the head motion into pulsating movement.
Operates with a car battery (with the addition of a converter), consuming 10-12A /h.
Comes with a 13-meter cable.

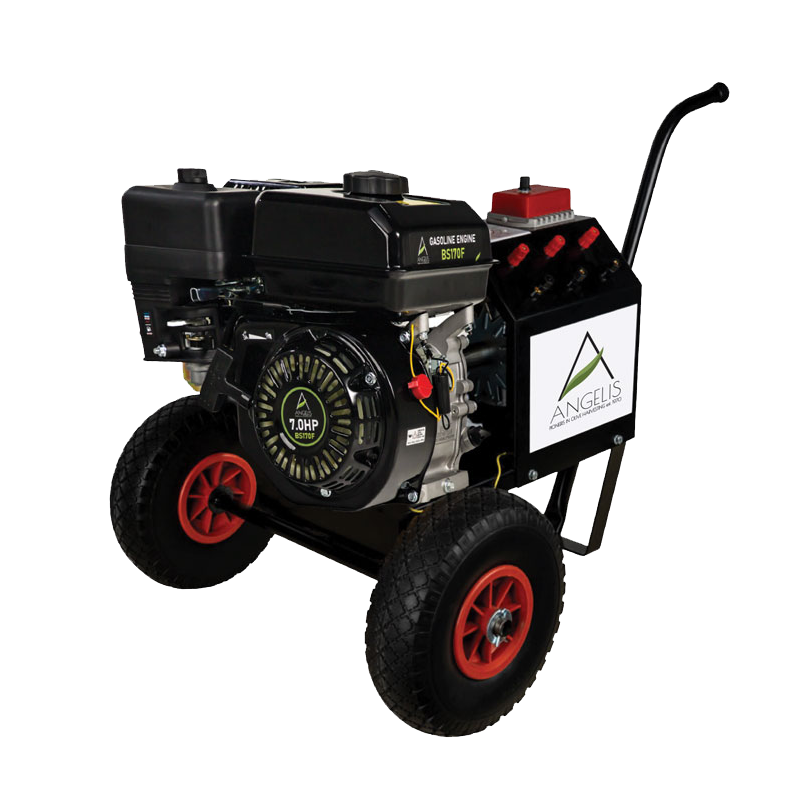

Wheeled Generator with 7hp ANGELIS Engine and Dynamo

Available with a 12-30V speed controller or a 13.8V voltage stabilizer
With a central adjustment for three olive harvesters of the same type
The 70A dynamo is mounted on anti-vibration rubber and its shaft has a coupler
It accepts engines with a threaded shaft or keyway
All equipped with metal terminals

Products

Contact

www.angelis-e.gr

EXPORTS

Apart from the Greek farmers, Angelis machines are trusted by farmers from Italy, Spain, Israel, Tunisia, France and Portugal. Our goal is our quality machinery to reach more farmers and even more countries.

Become a Partner
